Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.925 GeV | |
| Ebeam : | 5.75 GeV |
|

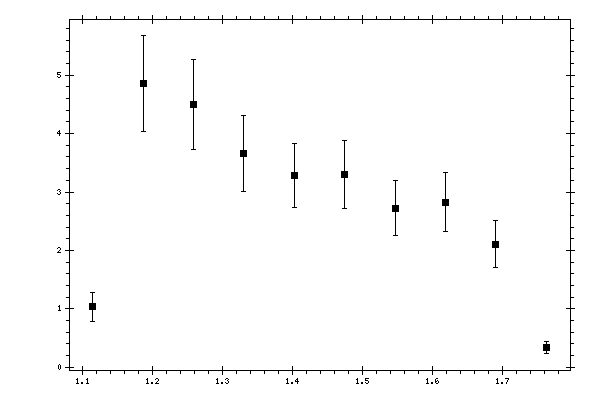

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.11384 | 1.03723 | 0.248092 |
| 1.18585 | 4.85406 | 0.819158 |
| 1.25786 | 4.5 | 0.775735 |
| 1.32987 | 3.66364 | 0.652669 |
| 1.40188 | 3.27723 | 0.550348 |
| 1.47389 | 3.2991 | 0.580611 |
| 1.5459 | 2.72519 | 0.476849 |
| 1.61791 | 2.82737 | 0.498718 |
| 1.68992 | 2.1078 | 0.40798 |
| 1.76193 | 0.337395 | 0.0960227 |
