Parameter (X axis): ψ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dψ(π−), mcb/rad
Differential cross section, where ψ(π−) is out-of-plane angle of p and π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.925 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dψ(π−), mcb/rad
Parameter (X axis): ψ(π−), deg |
Click here to get data in text file, delimited with tabs.

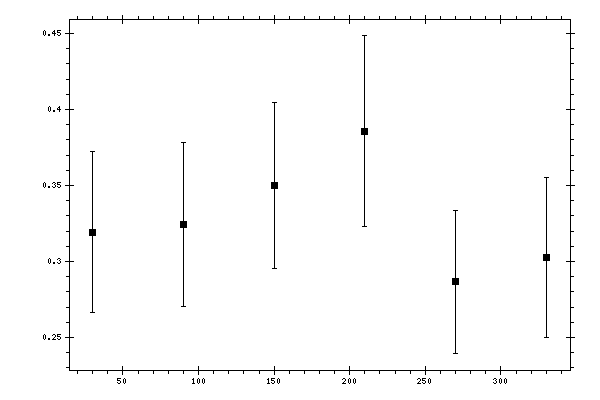

Measured data:
|
ψ(π−),
deg |
dσ/dψ(π−),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 30 | 0.319176 | 0.0528977 |
| 90 | 0.324453 | 0.0538093 |
| 150 | 0.349885 | 0.0546876 |
| 210 | 0.385749 | 0.0627522 |
| 270 | 0.286683 | 0.0470091 |
| 330 | 0.302689 | 0.0528689 |
