Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.925 GeV | |
| Ebeam : | 5.75 GeV |
|

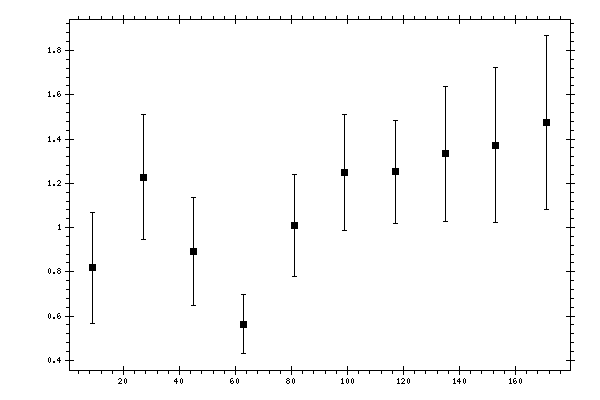

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.819323 | 0.250528 |
| 27 | 1.22789 | 0.283767 |
| 45 | 0.890801 | 0.243132 |
| 63 | 0.564343 | 0.131492 |
| 81 | 1.00831 | 0.230131 |
| 99 | 1.24872 | 0.261937 |
| 117 | 1.25253 | 0.232473 |
| 135 | 1.33295 | 0.304963 |
| 153 | 1.37255 | 0.348286 |
| 171 | 1.47424 | 0.391636 |
