Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.95 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

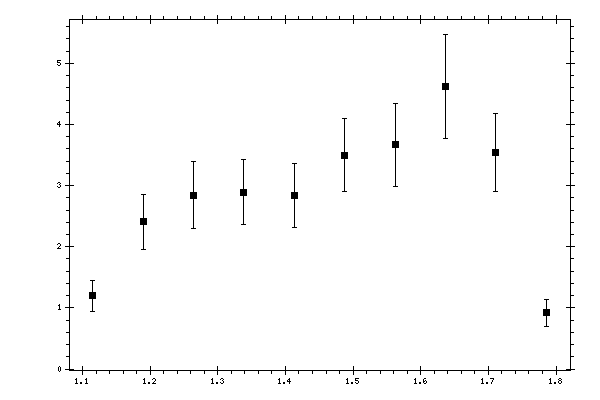

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.11509 | 1.19967 | 0.251801 |
| 1.1896 | 2.41027 | 0.448732 |
| 1.26411 | 2.84493 | 0.552386 |
| 1.33862 | 2.89455 | 0.524453 |
| 1.41313 | 2.83395 | 0.520743 |
| 1.48764 | 3.49778 | 0.595518 |
| 1.56215 | 3.66512 | 0.673961 |
| 1.63666 | 4.61834 | 0.8513 |
| 1.71117 | 3.54174 | 0.636185 |
| 1.78568 | 0.916211 | 0.227389 |
