Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.95 GeV | |
| Ebeam : | 5.75 GeV |
|

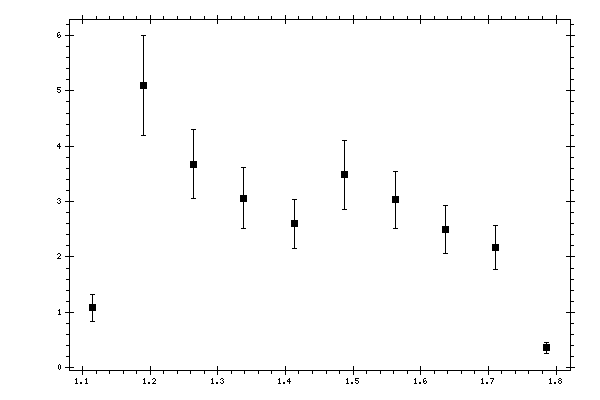

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.11509 | 1.08454 | 0.243568 |
| 1.1896 | 5.09448 | 0.899168 |
| 1.26411 | 3.67691 | 0.626981 |
| 1.33862 | 3.06197 | 0.546836 |
| 1.41313 | 2.60253 | 0.442465 |
| 1.48764 | 3.48362 | 0.619413 |
| 1.56215 | 3.03228 | 0.509023 |
| 1.63666 | 2.50116 | 0.433216 |
| 1.71117 | 2.16772 | 0.398619 |
| 1.78568 | 0.36145 | 0.0982409 |
