Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.95 GeV | |
| Ebeam : | 5.75 GeV |
|

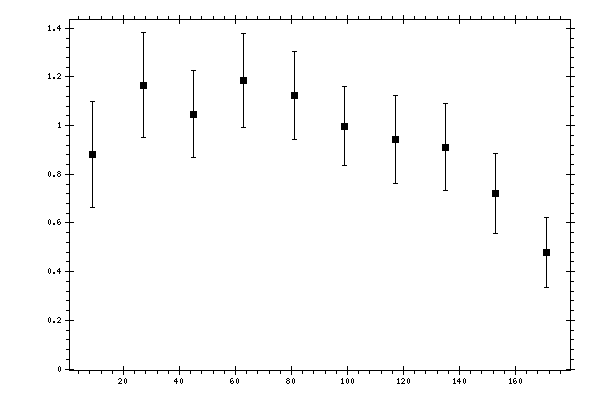

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 9 | 0.879517 | 0.217555 |
| 27 | 1.16552 | 0.216028 |
| 45 | 1.0464 | 0.178297 |
| 63 | 1.18401 | 0.193521 |
| 81 | 1.12523 | 0.180961 |
| 99 | 0.997606 | 0.162479 |
| 117 | 0.943565 | 0.181314 |
| 135 | 0.911137 | 0.179027 |
| 153 | 0.722214 | 0.164963 |
| 171 | 0.477551 | 0.144523 |
