Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.6 GeV | |
| Ebeam : | 5.75 GeV |
|

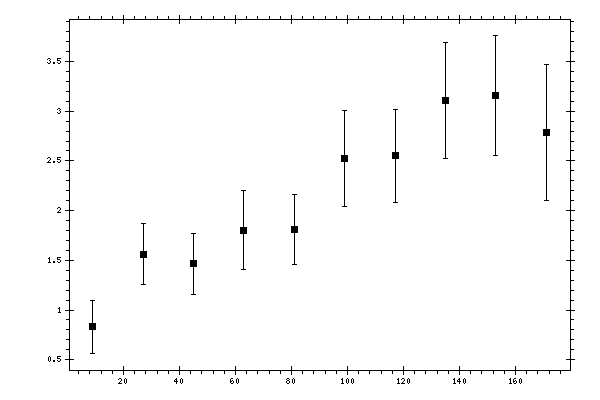

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 9 | 0.830567 | 0.264149 |
| 27 | 1.56268 | 0.308688 |
| 45 | 1.46397 | 0.308326 |
| 63 | 1.80336 | 0.397043 |
| 81 | 1.80638 | 0.350814 |
| 99 | 2.52371 | 0.479926 |
| 117 | 2.55259 | 0.468195 |
| 135 | 3.10868 | 0.582744 |
| 153 | 3.15491 | 0.602661 |
| 171 | 2.78331 | 0.684204 |
