Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.975 GeV | |
| Ebeam : | 5.75 GeV |
|

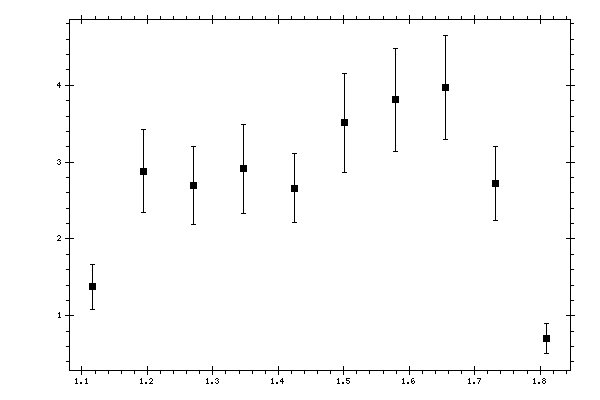

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.11634 | 1.37706 | 0.295018 |
| 1.19335 | 2.88178 | 0.537753 |
| 1.27036 | 2.69681 | 0.5048 |
| 1.34737 | 2.91133 | 0.583788 |
| 1.42438 | 2.65894 | 0.45037 |
| 1.50139 | 3.51254 | 0.644552 |
| 1.5784 | 3.81138 | 0.668434 |
| 1.65541 | 3.96965 | 0.674187 |
| 1.73242 | 2.72192 | 0.483026 |
| 1.80943 | 0.707252 | 0.193067 |
