Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.975 GeV | |
| Ebeam : | 5.75 GeV |
|

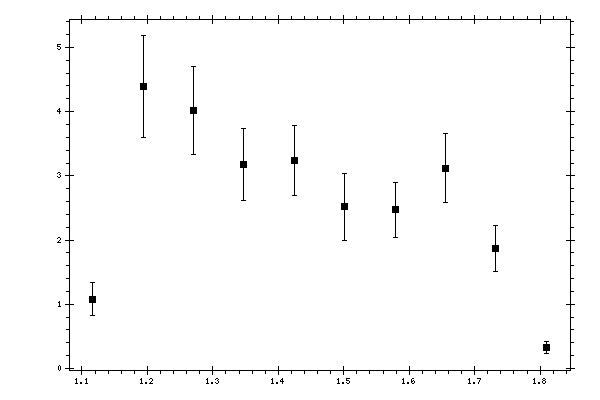

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.11634 | 1.07849 | 0.256977 |
| 1.19335 | 4.38783 | 0.792331 |
| 1.27036 | 4.02423 | 0.686339 |
| 1.34737 | 3.17595 | 0.560472 |
| 1.42438 | 3.23985 | 0.550657 |
| 1.50139 | 2.52038 | 0.51953 |
| 1.5784 | 2.47027 | 0.429319 |
| 1.65541 | 3.11674 | 0.53818 |
| 1.73242 | 1.87022 | 0.35625 |
| 1.80943 | 0.331651 | 0.0920627 |
