Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.4 GeV | |
| Ebeam : | 5.75 GeV |
|

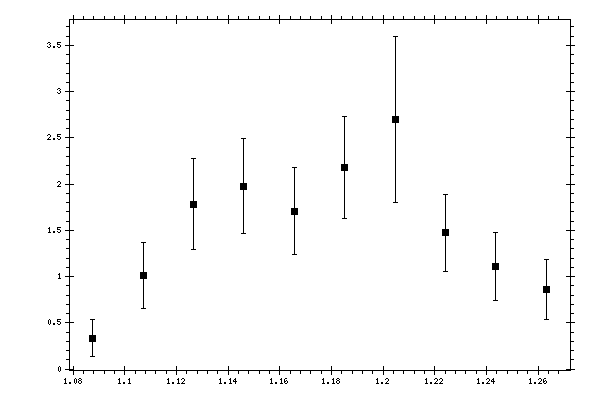

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.08759 | 0.333639 | 0.199269 |
| 1.1071 | 1.01557 | 0.357182 |
| 1.12661 | 1.78183 | 0.489892 |
| 1.14612 | 1.97743 | 0.513555 |
| 1.16563 | 1.70492 | 0.471577 |
| 1.18514 | 2.17572 | 0.55221 |
| 1.20465 | 2.69853 | 0.902892 |
| 1.22416 | 1.47115 | 0.413054 |
| 1.24367 | 1.11124 | 0.366472 |
| 1.26318 | 0.85974 | 0.32417 |
