Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.425 GeV | |
| Ebeam : | 5.75 GeV |
|

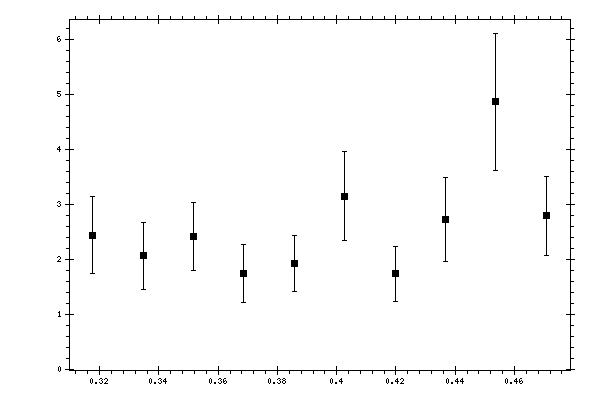

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 0.317645 | 2.43385 | 0.695249 |
| 0.334653 | 2.06092 | 0.611437 |
| 0.351663 | 2.40925 | 0.61718 |
| 0.368672 | 1.73851 | 0.527178 |
| 0.38568 | 1.91312 | 0.506285 |
| 0.40269 | 3.14144 | 0.811806 |
| 0.419699 | 1.72869 | 0.500633 |
| 0.436708 | 2.72281 | 0.764695 |
| 0.453717 | 4.85938 | 1.24451 |
| 0.470726 | 2.78399 | 0.72593 |
