Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.425 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

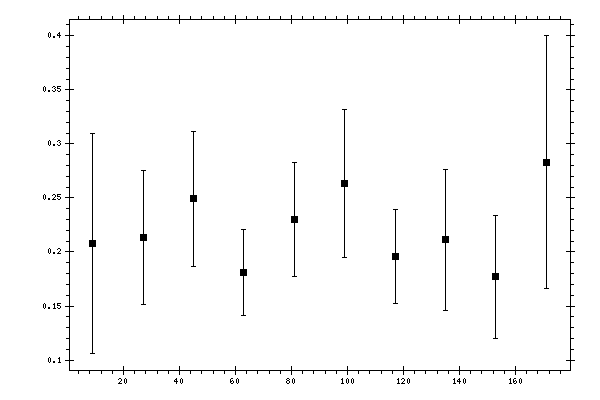

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.207977 | 0.101544 |
| 27 | 0.213354 | 0.0615853 |
| 45 | 0.249201 | 0.0626277 |
| 63 | 0.180794 | 0.0398904 |
| 81 | 0.230045 | 0.0524461 |
| 99 | 0.263115 | 0.0685044 |
| 117 | 0.195737 | 0.0433331 |
| 135 | 0.211286 | 0.0652148 |
| 153 | 0.17695 | 0.0568284 |
| 171 | 0.282846 | 0.117068 |
