Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.45 GeV | |
| Ebeam : | 5.75 GeV |
|

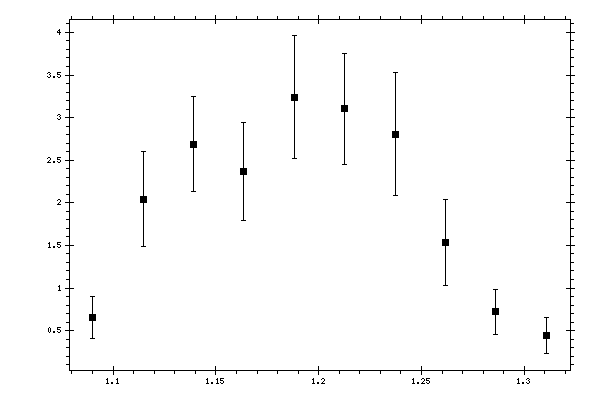

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.09009 | 0.65292 | 0.245243 |
| 1.1146 | 2.0439 | 0.557856 |
| 1.13911 | 2.68704 | 0.555262 |
| 1.16362 | 2.36526 | 0.576288 |
| 1.18813 | 3.24124 | 0.718153 |
| 1.21264 | 3.10202 | 0.648746 |
| 1.23715 | 2.80357 | 0.723077 |
| 1.26166 | 1.53575 | 0.501859 |
| 1.28617 | 0.718944 | 0.268191 |
| 1.31068 | 0.444809 | 0.208949 |
