Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.45 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

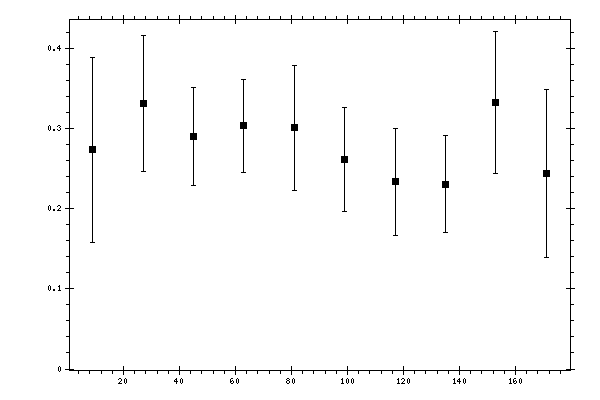

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 9 | 0.273279 | 0.115857 |
| 27 | 0.330753 | 0.0848811 |
| 45 | 0.289703 | 0.0611763 |
| 63 | 0.303234 | 0.0577176 |
| 81 | 0.300896 | 0.0782097 |
| 99 | 0.261079 | 0.0648364 |
| 117 | 0.233294 | 0.0662696 |
| 135 | 0.230502 | 0.0602659 |
| 153 | 0.332328 | 0.0889075 |
| 171 | 0.243461 | 0.104604 |
