Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.475 GeV | |
| Ebeam : | 5.75 GeV |
|

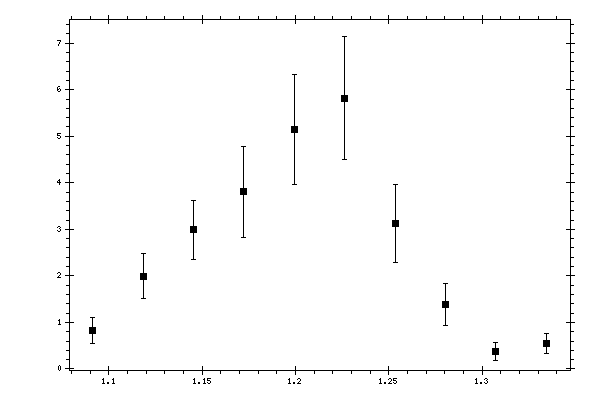

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.09134 | 0.835772 | 0.279014 |
| 1.11835 | 1.99533 | 0.488265 |
| 1.14536 | 2.98774 | 0.630896 |
| 1.17237 | 3.80467 | 0.98546 |
| 1.19938 | 5.15167 | 1.1807 |
| 1.22639 | 5.82106 | 1.32962 |
| 1.2534 | 3.11824 | 0.83761 |
| 1.28041 | 1.38987 | 0.45737 |
| 1.30742 | 0.377476 | 0.185617 |
| 1.33443 | 0.54993 | 0.221659 |
