Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.475 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.

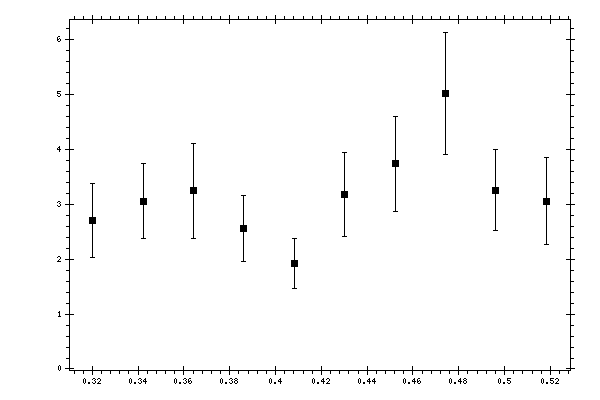

Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 0.320145 | 2.70786 | 0.669644 |
| 0.342153 | 3.05898 | 0.681822 |
| 0.364163 | 3.24923 | 0.86876 |
| 0.386171 | 2.56089 | 0.594958 |
| 0.40818 | 1.9289 | 0.457796 |
| 0.430189 | 3.18504 | 0.76578 |
| 0.452198 | 3.73859 | 0.867012 |
| 0.474207 | 5.0233 | 1.10684 |
| 0.496216 | 3.26061 | 0.738548 |
| 0.518225 | 3.06065 | 0.792928 |
