Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.5 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

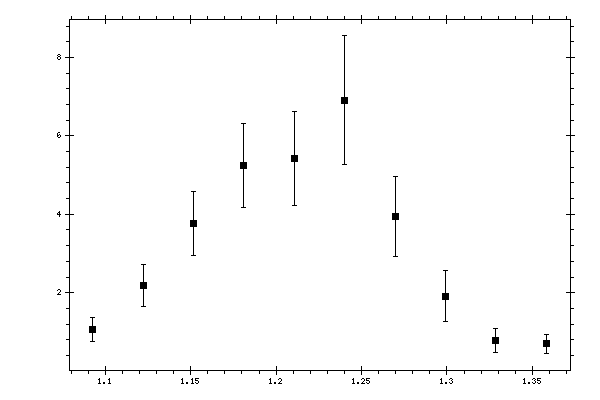

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.09259 | 1.05501 | 0.30775 |
| 1.1221 | 2.18184 | 0.53274 |
| 1.15161 | 3.76699 | 0.816936 |
| 1.18112 | 5.24664 | 1.06438 |
| 1.21063 | 5.43308 | 1.19995 |
| 1.24014 | 6.91598 | 1.63857 |
| 1.26965 | 3.93665 | 1.02163 |
| 1.29916 | 1.91432 | 0.654984 |
| 1.32867 | 0.787002 | 0.301666 |
| 1.35818 | 0.700953 | 0.244038 |
