Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.5 GeV | |
| Ebeam : | 5.75 GeV |
|

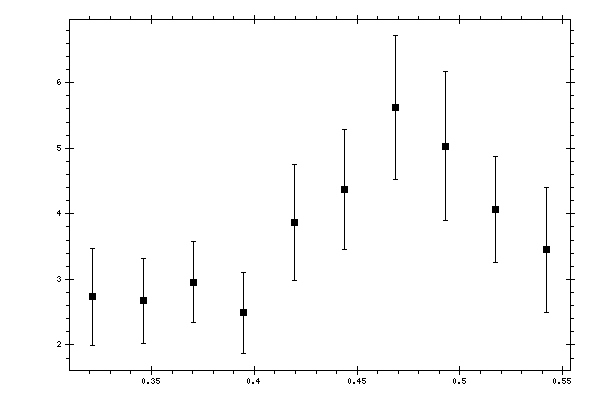

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.321395 | 2.73272 | 0.734318 |
| 0.345903 | 2.67275 | 0.65177 |
| 0.370412 | 2.95934 | 0.621583 |
| 0.394921 | 2.49059 | 0.614919 |
| 0.41943 | 3.86951 | 0.888526 |
| 0.443939 | 4.37197 | 0.914834 |
| 0.468448 | 5.62027 | 1.09333 |
| 0.492957 | 5.03212 | 1.13435 |
| 0.517466 | 4.07005 | 0.808405 |
| 0.541975 | 3.45047 | 0.948701 |
