Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.5 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

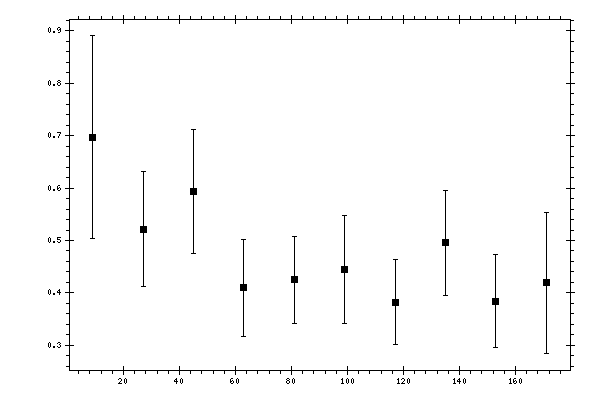

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.696958 | 0.193654 |
| 27 | 0.521323 | 0.109993 |
| 45 | 0.59288 | 0.118435 |
| 63 | 0.409508 | 0.0922861 |
| 81 | 0.424839 | 0.0833615 |
| 99 | 0.444954 | 0.10344 |
| 117 | 0.382161 | 0.0811442 |
| 135 | 0.495294 | 0.100535 |
| 153 | 0.384018 | 0.0887854 |
| 171 | 0.419416 | 0.134444 |
