Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.625 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

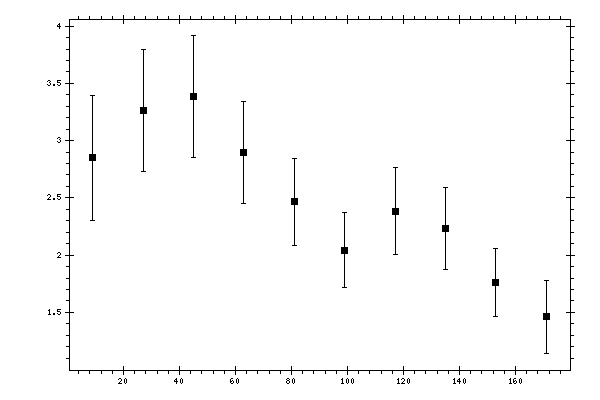

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 9 | 2.84878 | 0.549814 |
| 27 | 3.26201 | 0.534301 |
| 45 | 3.38299 | 0.532475 |
| 63 | 2.89806 | 0.443631 |
| 81 | 2.46433 | 0.383225 |
| 99 | 2.04257 | 0.326523 |
| 117 | 2.38536 | 0.381918 |
| 135 | 2.2308 | 0.359826 |
| 153 | 1.76342 | 0.295808 |
| 171 | 1.46253 | 0.318821 |
