Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.625 GeV | |
| Ebeam : | 5.75 GeV |
|

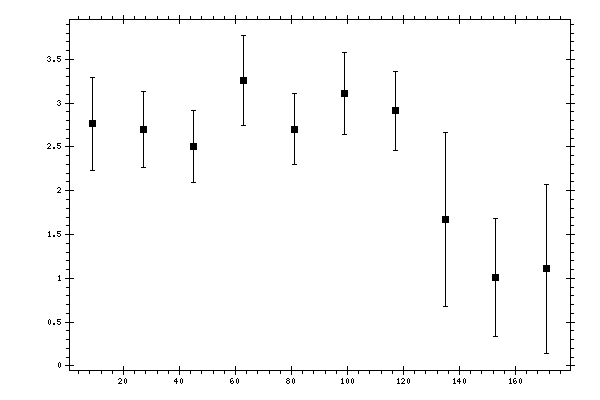

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 9 | 2.76172 | 0.527528 |
| 27 | 2.69944 | 0.436655 |
| 45 | 2.50733 | 0.41044 |
| 63 | 3.25686 | 0.510915 |
| 81 | 2.70434 | 0.400128 |
| 99 | 3.11173 | 0.468161 |
| 117 | 2.91349 | 0.450285 |
| 135 | 1.6702 | 0.989247 |
| 153 | 1.01025 | 0.674738 |
| 171 | 1.10918 | 0.963135 |
