Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.6 GeV | |
| Ebeam : | 5.75 GeV |
|

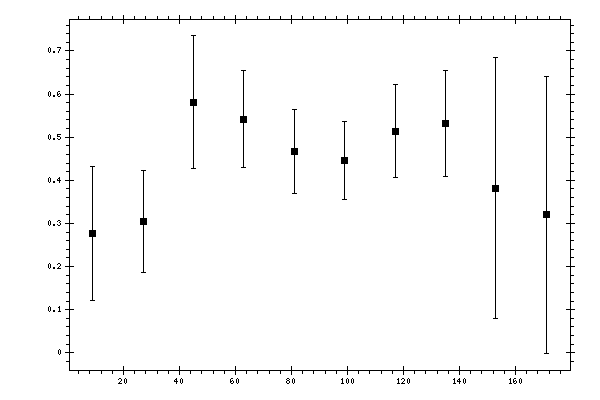

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.276677 | 0.155041 |
| 27 | 0.304299 | 0.117706 |
| 45 | 0.581516 | 0.153565 |
| 63 | 0.541709 | 0.112543 |
| 81 | 0.467235 | 0.098084 |
| 99 | 0.445491 | 0.0908843 |
| 117 | 0.513993 | 0.108108 |
| 135 | 0.531946 | 0.122148 |
| 153 | 0.382121 | 0.301682 |
| 171 | 0.320193 | 0.320947 |
