Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.6 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

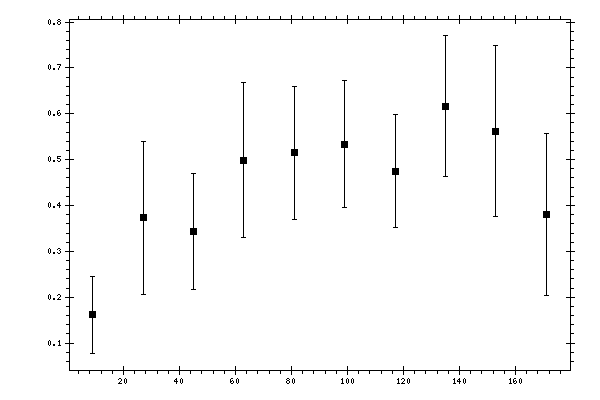

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.161746 | 0.0836225 |
| 27 | 0.373507 | 0.166755 |
| 45 | 0.343472 | 0.126656 |
| 63 | 0.499052 | 0.168726 |
| 81 | 0.515444 | 0.145032 |
| 99 | 0.533811 | 0.1384 |
| 117 | 0.474833 | 0.122749 |
| 135 | 0.616703 | 0.153114 |
| 153 | 0.562187 | 0.186659 |
| 171 | 0.38008 | 0.175856 |
