Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.625 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

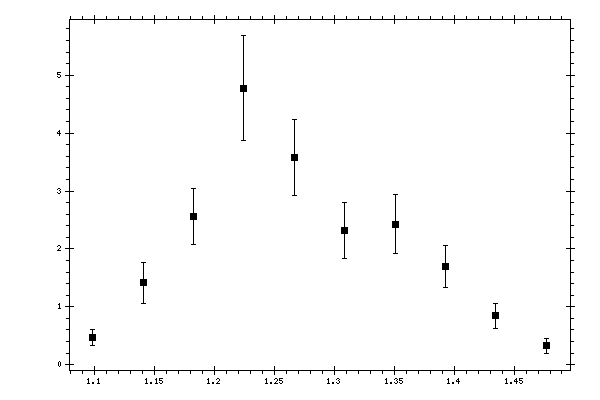

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.09884 | 0.46884 | 0.145291 |
| 1.14085 | 1.41383 | 0.349651 |
| 1.18286 | 2.55725 | 0.482039 |
| 1.22487 | 4.77366 | 0.906081 |
| 1.26688 | 3.57726 | 0.651591 |
| 1.30889 | 2.31266 | 0.483448 |
| 1.3509 | 2.42926 | 0.502456 |
| 1.39291 | 1.69938 | 0.360638 |
| 1.43492 | 0.847383 | 0.21532 |
| 1.47693 | 0.323169 | 0.123499 |
