Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.65 GeV | |
| Ebeam : | 5.75 GeV |
|

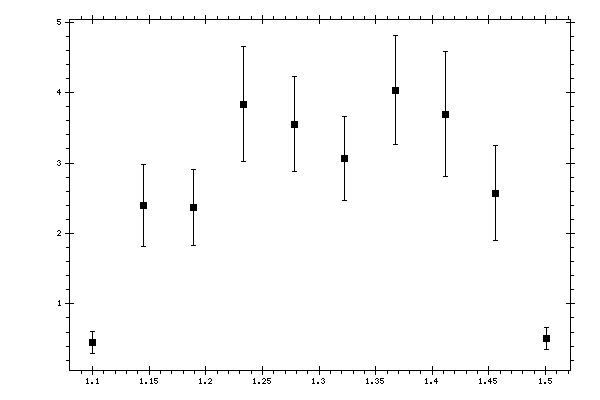

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.10009 | 0.455626 | 0.155679 |
| 1.1446 | 2.39702 | 0.58328 |
| 1.18911 | 2.36574 | 0.537149 |
| 1.23362 | 3.836 | 0.82096 |
| 1.27813 | 3.55168 | 0.672625 |
| 1.32264 | 3.06614 | 0.59623 |
| 1.36715 | 4.03223 | 0.774542 |
| 1.41166 | 3.69198 | 0.887781 |
| 1.45617 | 2.57287 | 0.673278 |
| 1.50068 | 0.506795 | 0.161006 |
