Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.65 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.

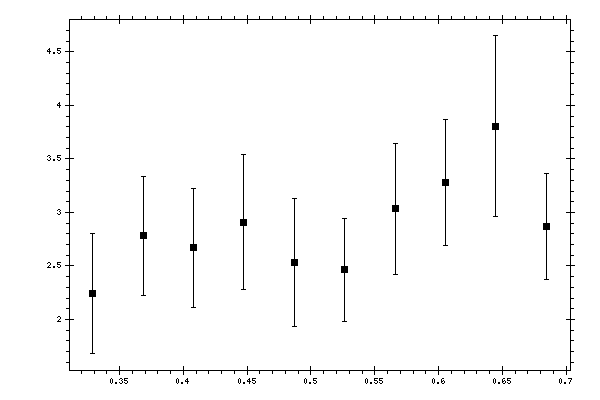

Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.328894 | 2.24332 | 0.5582 |
| 0.368403 | 2.78014 | 0.557265 |
| 0.407913 | 2.66847 | 0.559419 |
| 0.447422 | 2.90955 | 0.629437 |
| 0.486931 | 2.52892 | 0.598216 |
| 0.52644 | 2.46364 | 0.482399 |
| 0.565949 | 3.03434 | 0.610268 |
| 0.605458 | 3.27774 | 0.589952 |
| 0.644967 | 3.80439 | 0.845295 |
| 0.684476 | 2.86969 | 0.4964 |
