Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.65 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

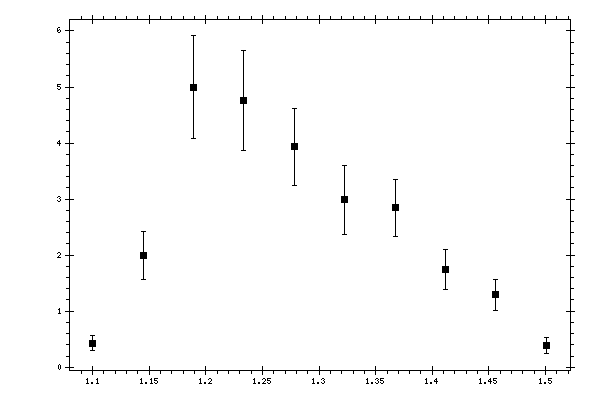

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.10009 | 0.431935 | 0.141076 |
| 1.1446 | 1.9988 | 0.43097 |
| 1.18911 | 4.99348 | 0.91951 |
| 1.23362 | 4.76055 | 0.895775 |
| 1.27813 | 3.93098 | 0.687711 |
| 1.32264 | 2.98649 | 0.612296 |
| 1.36715 | 2.84274 | 0.505826 |
| 1.41166 | 1.74369 | 0.354707 |
| 1.45617 | 1.29319 | 0.277802 |
| 1.50068 | 0.387741 | 0.136414 |
