Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.65 GeV | |
| Ebeam : | 5.75 GeV |
|

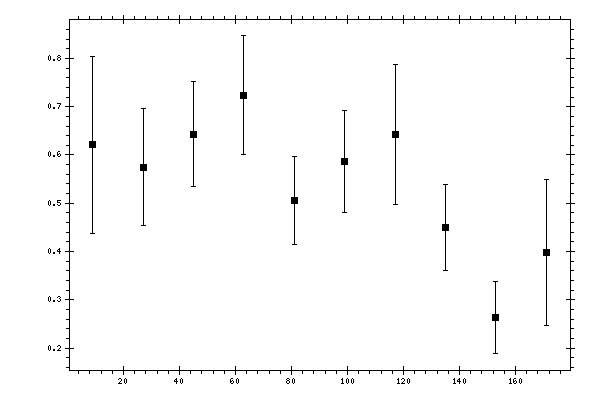

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.620999 | 0.18329 |
| 27 | 0.575003 | 0.121099 |
| 45 | 0.643421 | 0.10929 |
| 63 | 0.724138 | 0.122733 |
| 81 | 0.505736 | 0.0915832 |
| 99 | 0.585833 | 0.105563 |
| 117 | 0.642236 | 0.145594 |
| 135 | 0.450249 | 0.0887821 |
| 153 | 0.263782 | 0.074387 |
| 171 | 0.397854 | 0.151669 |
