Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.675 GeV | |
| Ebeam : | 5.75 GeV |
|

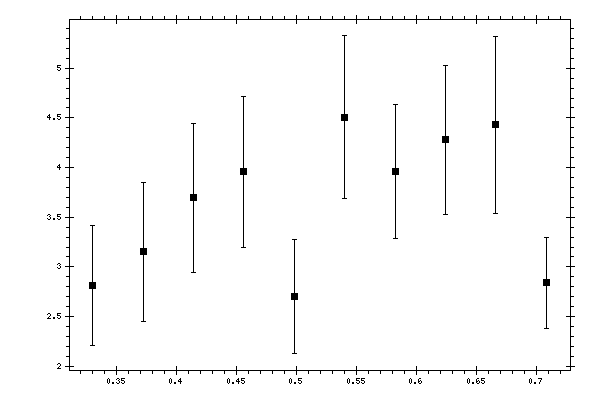

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.330144 | 2.81285 | 0.605941 |
| 0.372153 | 3.15068 | 0.698625 |
| 0.414163 | 3.69527 | 0.748518 |
| 0.456172 | 3.95761 | 0.75751 |
| 0.498181 | 2.70445 | 0.572671 |
| 0.54019 | 4.50757 | 0.818068 |
| 0.582199 | 3.95535 | 0.674483 |
| 0.624207 | 4.2777 | 0.747413 |
| 0.666217 | 4.4295 | 0.890754 |
| 0.708226 | 2.83881 | 0.461591 |
