Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.7 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

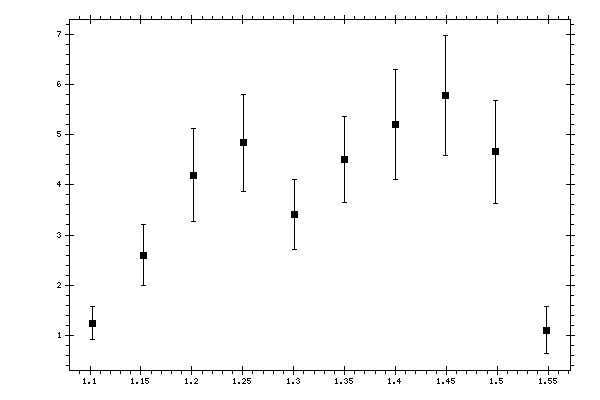

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.10259 | 1.24117 | 0.328965 |
| 1.1521 | 2.5998 | 0.603943 |
| 1.20161 | 4.19784 | 0.937317 |
| 1.25112 | 4.84025 | 0.976132 |
| 1.30063 | 3.40478 | 0.699055 |
| 1.35014 | 4.5048 | 0.854464 |
| 1.39965 | 5.20634 | 1.09813 |
| 1.44916 | 5.78627 | 1.1914 |
| 1.49867 | 4.66522 | 1.02621 |
| 1.54818 | 1.10147 | 0.461026 |
