Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 4.2 — 5 GeV2 | |
|---|---|---|
| W : | 1.725 GeV | |
| Ebeam : | 5.75 GeV |
|

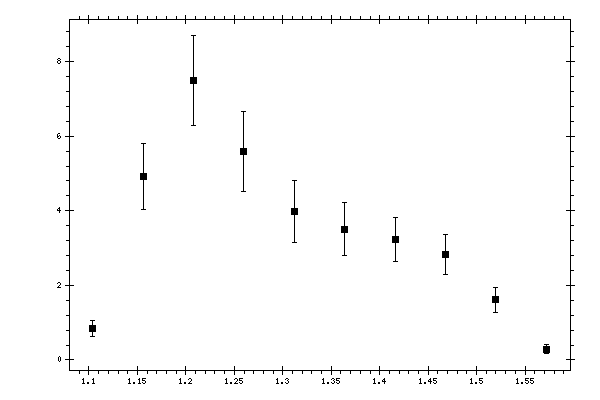

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.10384 | 0.844289 | 0.207203 |
| 1.15585 | 4.92467 | 0.879571 |
| 1.20786 | 7.48468 | 1.20617 |
| 1.25987 | 5.5896 | 1.08091 |
| 1.31188 | 3.97598 | 0.83297 |
| 1.36389 | 3.50641 | 0.702611 |
| 1.4159 | 3.22747 | 0.580807 |
| 1.46791 | 2.81707 | 0.534287 |
| 1.51992 | 1.61067 | 0.327497 |
| 1.57193 | 0.29265 | 0.110577 |
