Experiment: g13, 2006
Spokespersons: Paul Mattione
Experiment comment: Ran: 2006-2007
Publication:
Quantity measured: dσ/dΩ, mcb
Differential cross section.
Beam: γ, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: π− p, polarization: none
Eγ : | 1.87 GeV |
---|
Observable quantity measured (Y axis): dσ/dΩ, mcb
Parameter (X axis): cos(θπ), |
Click here to get data in text file, delimited with tabs.

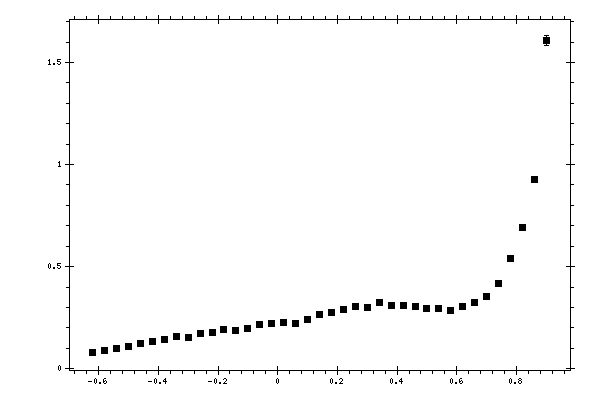

Measured data:
cos(θπ) |
dσ/dΩ,
mcb |
Data errors,
mcb |
Systematic errors,
mcb |
Full errors,
mcb |
---|---|---|---|---|
-0.62 | 0.0791 | 0.0031 | 0.0088 | 0.0096 |
-0.58 | 0.0905 | 0.0023 | 0.0096 | 0.0102 |
-0.54 | 0.0967 | 0.0022 | 0.008 | 0.009 |
-0.5 | 0.109 | 0.0021 | 0.0123 | 0.0128 |
-0.46 | 0.1233 | 0.0022 | 0.008 | 0.009 |
-0.42 | 0.1322 | 0.0024 | 0.008 | 0.009 |
-0.38 | 0.143 | 0.0025 | 0.01 | 0.011 |
-0.34 | 0.1555 | 0.0028 | 0.0168 | 0.0176 |
-0.3 | 0.1529 | 0.0028 | 0.013 | 0.014 |
-0.26 | 0.1739 | 0.003 | 0.015 | 0.016 |
-0.22 | 0.1775 | 0.0028 | 0.01 | 0.012 |
-0.18 | 0.1939 | 0.0027 | 0.017 | 0.018 |
-0.14 | 0.1846 | 0.0025 | 0.013 | 0.014 |
-0.1 | 0.1954 | 0.0026 | 0.017 | 0.018 |
-0.06 | 0.2156 | 0.0028 | 0.015 | 0.016 |
-0.02 | 0.2192 | 0.0026 | 0.014 | 0.016 |
0.02 | 0.225 | 0.0025 | 0.015 | 0.016 |
0.06 | 0.2225 | 0.0026 | 0.01 | 0.012 |
0.1 | 0.2429 | 0.003 | 0.014 | 0.016 |
0.14 | 0.2653 | 0.0031 | 0.02 | 0.022 |
0.18 | 0.2773 | 0.0028 | 0.022 | 0.024 |
0.22 | 0.2921 | 0.0026 | 0.018 | 0.019 |
0.26 | 0.3051 | 0.0026 | 0.017 | 0.019 |
0.3 | 0.3009 | 0.0027 | 0.013 | 0.015 |
0.34 | 0.3251 | 0.003 | 0.016 | 0.018 |
0.38 | 0.3107 | 0.003 | 0.012 | 0.015 |
0.42 | 0.31 | 0.003 | 0.017 | 0.019 |
0.46 | 0.3039 | 0.003 | 0.019 | 0.021 |
0.5 | 0.2964 | 0.0029 | 0.018 | 0.02 |
0.54 | 0.2965 | 0.0028 | 0.024 | 0.025 |
0.58 | 0.2863 | 0.0027 | 0.014 | 0.016 |
0.62 | 0.3049 | 0.0028 | 0.015 | 0.017 |
0.66 | 0.3235 | 0.0028 | 0.016 | 0.018 |
0.7 | 0.3548 | 0.0031 | 0.018 | 0.021 |
0.74 | 0.4162 | 0.0035 | 0.025 | 0.027 |
0.78 | 0.5406 | 0.004 | 0.032 | 0.035 |
0.82 | 0.6916 | 0.0046 | 0.039 | 0.044 |
0.86 | 0.925 | 0.0065 | 0.074 | 0.079 |
0.9 | 1.6077 | 0.0231 | 0.14 | 0.14 |
