Measurement E160M64

You are not logged in.

Experiment: g13, 2006

Spokespersons: Paul Mattione

Experiment comment: Ran: 2006-2007

Publication:

P. T. Mattione et al. (CLAS Collaboration) Differential Cross Section Measurements for γn → π⁻p Above the First Nucleon Resonance Region // Phys. Rev. C 96, 035204 (2017) arXiv:1706.01963 [nucl-ex]

Quantity measured: dσ/dΩ, mcb
Differential cross section.
Beam: γ, polarization: none
Target: d (Z=1, A=2), polarization: none
Final state: π⁻ p, polarization: none

E_γ :	1.075 GeV

Observable quantity measured (Y axis): dσ/dΩ, mcb

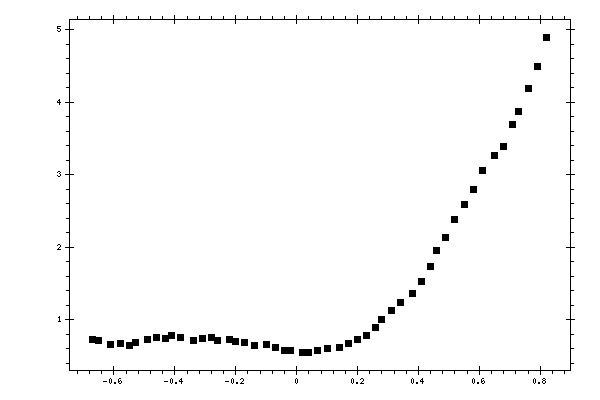

Plot measurement data

Parameter (X axis): cos(θ_π),

Click here to get data in text file, delimited with tabs.

Measured data:

cos(θ_π)	dσ/dΩ, mcb	Data errors, mcb	Systematic errors, mcb	Full errors, mcb
-0.67	0.7307	0.0132	0.061	0.066
-0.65	0.7143	0.012	0.059	0.064
-0.61	0.6644	0.011	0.057	0.06
-0.58	0.6687	0.011	0.063	0.066
-0.55	0.6518	0.0105	0.053	0.057
-0.53	0.683	0.0105	0.0704	0.0738
-0.49	0.7277	0.0111	0.072	0.075
-0.46	0.7574	0.0101	0.055	0.06
-0.43	0.7478	0.009	0.07	0.073
-0.41	0.7797	0.0086	0.064	0.067
-0.38	0.7545	0.0082	0.045	0.05
-0.34	0.7095	0.0077	0.053	0.057
-0.31	0.7368	0.0079	0.041	0.046
-0.28	0.7507	0.008	0.05	0.053
-0.26	0.7165	0.0076	0.04	0.045
-0.22	0.7219	0.0078	0.043	0.048
-0.2	0.6959	0.0075	0.035	0.04
-0.17	0.6869	0.0075	0.044	0.048
-0.14	0.6484	0.0071	0.03	0.036
-0.1	0.6564	0.0076	0.033	0.039
-0.07	0.6228	0.0075	0.046	0.05
-0.04	0.5774	0.0069	0.035	0.039
-0.02	0.5749	0.0067	0.042	0.045
0.02	0.5464	0.0061	0.033	0.037
0.04	0.5468	0.0058	0.035	0.038
0.07	0.5833	0.006	0.032	0.036
0.1	0.6016	0.006	0.043	0.046
0.14	0.6193	0.0062	0.035	0.038
0.17	0.6744	0.0065	0.035	0.04
0.2	0.7233	0.0066	0.036	0.041
0.23	0.7882	0.0067	0.035	0.042
0.26	0.8999	0.0074	0.045	0.051
0.28	1.008	0.0083	0.048	0.055
0.31	1.1221	0.0094	0.054	0.062
0.34	1.2369	0.0102	0.059	0.069
0.38	1.3625	0.0104	0.056	0.067
0.41	1.5346	0.0101	0.055	0.069
0.44	1.7403	0.01	0.052	0.071
0.46	1.9526	0.0101	0.064	0.084
0.49	2.1365	0.0102	0.049	0.075
0.52	2.3771	0.0109	0.067	0.09
0.55	2.5921	0.0114	0.099	0.12
0.58	2.8027	0.012	0.1	0.13
0.61	3.0565	0.0127	0.095	0.13
0.65	3.2603	0.0131	0.12	0.15
0.68	3.3956	0.0133	0.16	0.19
0.71	3.6878	0.0139	0.17	0.19
0.73	3.8695	0.0144	0.14	0.17
0.76	4.19	0.0161	0.2	0.23
0.79	4.4932	0.0194	0.25	0.27
0.82	4.8884	0.0277	0.15	0.2
