Parameter (X axis): cos(θπ),
You are not logged in.
Experiment: g13, 2006
Spokespersons: Paul Mattione
Experiment comment: Ran: 2006-2007
Publication:
Quantity measured: dσ/dΩ, mcb
Differential cross section.
Beam: γ, polarization: none
Target: n (Z=0, A=1), polarization: none
Final state: π− p, polarization: none
| Eγ : | 0.445 GeV |
|---|
|

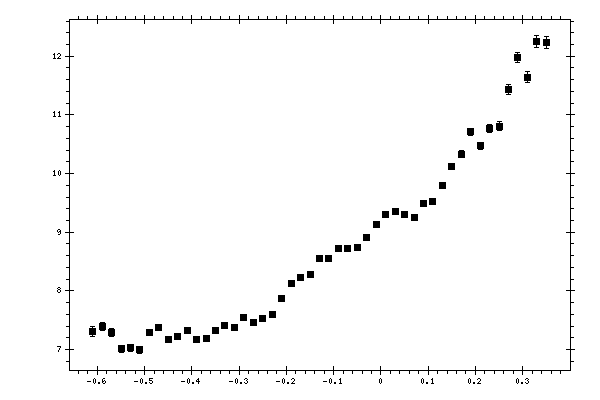

Observable quantity measured (Y axis): dσ/dΩ, mcb
Parameter (X axis): cos(θπ), |
Click here to get data in text file, delimited with tabs.
Measured data:
| cos(θπ) |
dσ/dΩ,
mcb |
Data errors,
mcb |
Systematic errors,
mcb |
Full errors,
mcb |
|---|---|---|---|---|
| -0.61 | 7.3051 | 0.0829195672198 | 0.579699668253 | 0.617748794742 |
| -0.59 | 7.3938 | 0.0732315431641 | 0.599947081905 | 0.635548239261 |
| -0.57 | 7.291 | 0.0643794628304 | 0.485651412811 | 0.527780386491 |
| -0.55 | 7.014 | 0.0583432954479 | 0.536939540243 | 0.571188739438 |
| -0.53 | 7.0277 | 0.0567540562367 | 0.402417615296 | 0.446833874112 |
| -0.51 | 6.9944 | 0.05589332547 | 0.309391816582 | 0.3651074872 |
| -0.49 | 7.293 | 0.0557559352213 | 0.556513940246 | 0.5925877709 |
| -0.47 | 7.3775 | 0.0541766487966 | 0.484077783755 | 0.524940939239 |
| -0.45 | 7.1692 | 0.0505511273229 | 0.525072217439 | 0.562602541045 |
| -0.43 | 7.2185 | 0.0499126414987 | 0.339652201846 | 0.395080318943 |
| -0.41 | 7.3226 | 0.0500977227709 | 0.390902837254 | 0.439905370719 |
| -0.39 | 7.1651 | 0.0490541917242 | 0.287951551957 | 0.351427441676 |
| -0.37 | 7.1816 | 0.0489362479422 | 0.370078550631 | 0.421317183233 |
| -0.35 | 7.3297 | 0.0496451473125 | 0.400837335272 | 0.448635674195 |
| -0.33 | 7.4053 | 0.0496351688153 | 0.493309223527 | 0.532861209128 |
| -0.31 | 7.3762 | 0.0486026690813 | 0.462352452744 | 0.504229928286 |
| -0.29 | 7.5529 | 0.0485978030798 | 0.380105897791 | 0.434818777043 |
| -0.27 | 7.462 | 0.0476726331442 | 0.318552554611 | 0.382063732447 |
| -0.25 | 7.533 | 0.0480836345286 | 0.267106578149 | 0.340414892533 |
| -0.23 | 7.5986 | 0.0481912562542 | 0.246635952003 | 0.324629912363 |
| -0.21 | 7.8707 | 0.0480935840188 | 0.452149419082 | 0.503312716977 |
| -0.19 | 8.1218 | 0.0470709826004 | 0.596144548408 | 0.635755907782 |
| -0.17 | 8.2201 | 0.0446090980706 | 0.565342761844 | 0.610521715951 |
| -0.15 | 8.2745 | 0.0420479400144 | 0.483173851466 | 0.535144851717 |
| -0.13 | 8.5567 | 0.041439542625 | 0.586136950129 | 0.629642456576 |
| -0.11 | 8.5548 | 0.0400122303715 | 0.483447030626 | 0.535284304591 |
| -0.09 | 8.7302 | 0.039711720757 | 0.390988464324 | 0.458737432859 |
| -0.07 | 8.7209 | 0.039209625801 | 0.473378923532 | 0.530708199837 |
| -0.05 | 8.7392 | 0.0392257103812 | 0.473578276154 | 0.530930512359 |
| -0.03 | 8.9136 | 0.039855844531 | 0.54584686649 | 0.596359274122 |
| -0.01 | 9.1239 | 0.0406921448411 | 0.473856000646 | 0.536026738723 |
| 0.01 | 9.3021 | 0.0414306122449 | 0.566787786009 | 0.619794641895 |
| 0.03 | 9.3578 | 0.0420663324556 | 0.639217321162 | 0.686730933299 |
| 0.05 | 9.3079 | 0.0424961746454 | 0.57763891415 | 0.629884041591 |
| 0.07 | 9.2446 | 0.0432313686537 | 0.608766900188 | 0.65862334833 |
| 0.09 | 9.4843 | 0.0455201808802 | 0.753526325441 | 0.797787116463 |
| 0.11 | 9.5263 | 0.0467780332347 | 0.815759906839 | 0.856911549366 |
| 0.13 | 9.7967 | 0.0486519231986 | 1.05357727783 | 1.08835667814 |
| 0.15 | 10.12 | 0.0512556800196 | 0.888723182586 | 0.929862585419 |
| 0.17 | 10.3324 | 0.0542689783505 | 1.05440434274 | 1.09206644119 |
| 0.19 | 10.7104 | 0.0590426568836 | 1.07538038139 | 1.11523737351 |
| 0.21 | 10.4706 | 0.0634048977576 | 0.972234698486 | 1.01353484075 |
| 0.23 | 10.7707 | 0.0701424896744 | 0.982800143031 | 1.02699908252 |
| 0.25 | 10.8071 | 0.0748136087706 | 0.993386814863 | 1.03747798503 |
| 0.27 | 11.4311 | 0.0819095941661 | 1.17013666654 | 1.21343976413 |
| 0.29 | 11.9824 | 0.0896839664273 | 0.974582205956 | 1.030125506 |
| 0.31 | 11.6447 | 0.0918908559964 | 0.892984524269 | 0.950207381638 |
| 0.33 | 12.247 | 0.100905376709 | 0.977807294384 | 1.03783455764 |
| 0.35 | 12.2406 | 0.104889638842 | 0.781996907707 | 0.856644598987 |
