Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 1.5653 GeV2 |
|---|---|
| xb : | 0.1772 |
| -t: | 0.2819 |
|

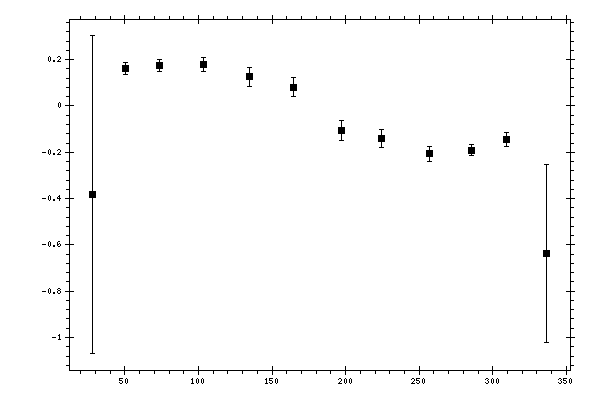

Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 28.119 | -0.3824 | 0.6852 |
| 50.2425 | 0.162 | 0.0274 |
| 73.7667 | 0.1763 | 0.0258 |
| 103.4781 | 0.1786 | 0.0317 |
| 134.5666 | 0.1254 | 0.0424 |
| 164.3223 | 0.0811 | 0.0402 |
| 197.3449 | -0.1069 | 0.0427 |
| 224.7145 | -0.1401 | 0.0377 |
| 257.1572 | -0.2071 | 0.0324 |
| 285.6241 | -0.1902 | 0.0246 |
| 309.35 | -0.1448 | 0.0322 |
| 336.3834 | -0.6382 | 0.3839 |
