Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 1.949 GeV2 |
|---|---|
| xb : | 0.2487 |
| -t: | 0.2809 |
|
Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.

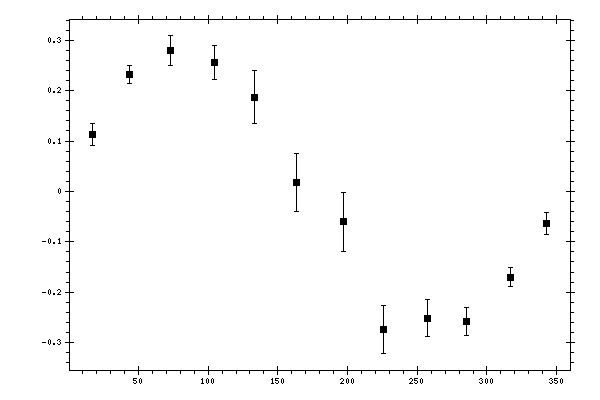

Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 17.1754 | 0.1124 | 0.0221 |
| 43.4671 | 0.2321 | 0.0175 |
| 72.9762 | 0.2798 | 0.029 |
| 104.466 | 0.2561 | 0.0345 |
| 133.4071 | 0.1867 | 0.0525 |
| 163.6467 | 0.0185 | 0.0575 |
| 196.9362 | -0.0605 | 0.0588 |
| 225.4951 | -0.2739 | 0.0471 |
| 257.6624 | -0.2513 | 0.0358 |
| 285.6434 | -0.2588 | 0.0277 |
| 316.8753 | -0.1704 | 0.0189 |
| 342.5843 | -0.0644 | 0.0216 |
