Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 2.2131 GeV2 |
|---|---|
| xb : | 0.2525 |
| -t: | 0.2814 |
|

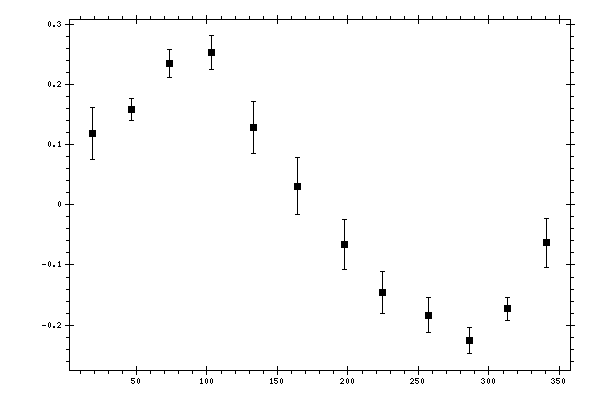

Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
deg |
A,
dimensionless |
Stat. error,
dimensionless |
|---|---|---|
| 18.9359 | 0.1191 | 0.0427 |
| 46.3532 | 0.1584 | 0.0185 |
| 73.4877 | 0.236 | 0.0231 |
| 103.3959 | 0.2538 | 0.0278 |
| 132.9431 | 0.1291 | 0.0432 |
| 164.3849 | 0.0315 | 0.0478 |
| 197.3175 | -0.0655 | 0.0418 |
| 224.5224 | -0.146 | 0.0353 |
| 257.1179 | -0.1833 | 0.0284 |
| 286.2293 | -0.2253 | 0.0215 |
| 313.4737 | -0.1732 | 0.0191 |
| 340.6567 | -0.063 | 0.0409 |
