Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 2.6372 GeV2 |
|---|---|
| xb : | 0.3447 |
| -t: | 0.2966 |
|

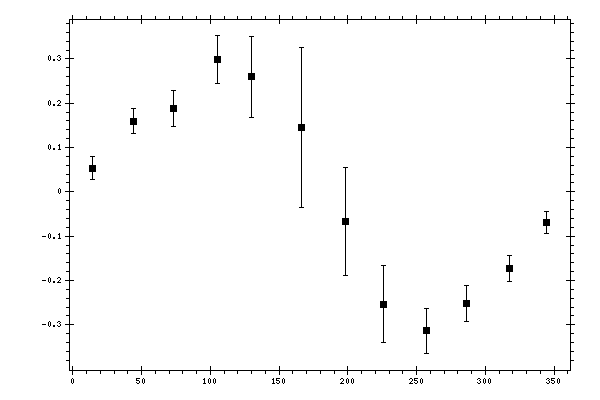

Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 14.3648 | 0.053 | 0.0259 |
| 44.3098 | 0.1594 | 0.028 |
| 73.1295 | 0.188 | 0.0401 |
| 105.0054 | 0.2979 | 0.054 |
| 129.7014 | 0.2596 | 0.0916 |
| 166.1786 | 0.1444 | 0.1802 |
| 198.163 | -0.0672 | 0.1226 |
| 226.1817 | -0.2532 | 0.0874 |
| 256.9076 | -0.3139 | 0.05 |
| 285.9948 | -0.252 | 0.0404 |
| 317.9151 | -0.1723 | 0.029 |
| 344.356 | -0.0692 | 0.0243 |
