Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 1.358 GeV2 |
|---|---|
| xb : | 0.175 |
| -t: | 0.491 |
|

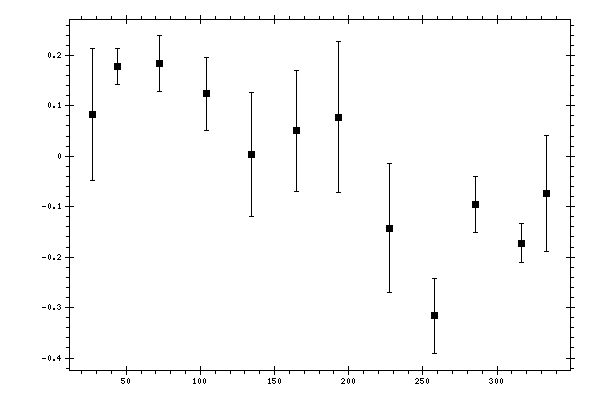

Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
deg |
A,
dimensionless |
Stat. error,
dimensionless |
|---|---|---|
| 27.3317 | 0.083 | 0.1313 |
| 44.1736 | 0.1786 | 0.0356 |
| 72.2537 | 0.1831 | 0.0555 |
| 104.0868 | 0.1241 | 0.0723 |
| 134.5042 | 0.0038 | 0.1227 |
| 165.0676 | 0.0503 | 0.1197 |
| 192.9413 | 0.0777 | 0.1493 |
| 227.2622 | -0.1422 | 0.1269 |
| 258.0286 | -0.3164 | 0.0738 |
| 285.3217 | -0.0955 | 0.0547 |
| 316.6645 | -0.1723 | 0.0381 |
| 333.1584 | -0.0732 | 0.1152 |
