Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 1.5611 GeV2 |
|---|---|
| xb : | 0.1765 |
| -t: | 0.4909 |
|

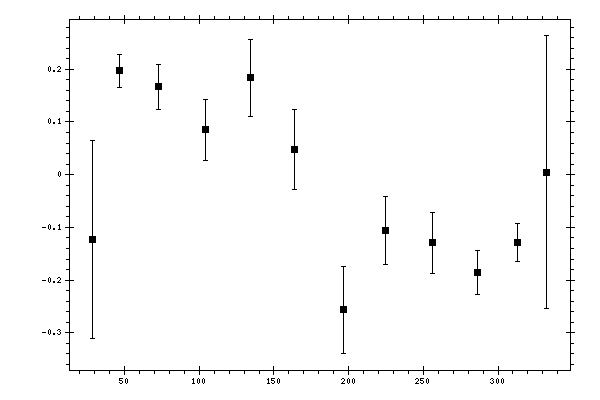

Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 28.6299 | -0.1228 | 0.1876 |
| 46.433 | 0.197 | 0.0319 |
| 72.9925 | 0.1664 | 0.0428 |
| 103.8537 | 0.0848 | 0.0571 |
| 134.1272 | 0.1839 | 0.0735 |
| 164.0506 | 0.0472 | 0.0758 |
| 196.6261 | -0.2562 | 0.0824 |
| 224.8353 | -0.1054 | 0.0649 |
| 255.9545 | -0.1295 | 0.0575 |
| 285.9787 | -0.185 | 0.0417 |
| 312.8313 | -0.1292 | 0.0364 |
| 332.3397 | 0.0043 | 0.2591 |
