Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 1.9485 GeV2 |
|---|---|
| xb : | 0.2486 |
| -t: | 0.4873 |
|
Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.

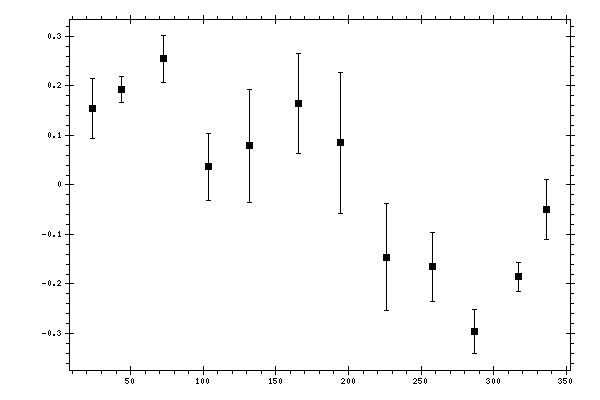

Measured data:
|
φ,
deg |
A,
dimensionless |
Stat. error,
dimensionless |
|---|---|---|
| 23.9132 | 0.1548 | 0.0608 |
| 43.5204 | 0.1926 | 0.0267 |
| 72.7362 | 0.2544 | 0.0466 |
| 103.3373 | 0.0363 | 0.0672 |
| 131.7697 | 0.0788 | 0.1134 |
| 165.4213 | 0.1644 | 0.1002 |
| 194.6935 | 0.0847 | 0.1428 |
| 226.3 | -0.146 | 0.108 |
| 257.818 | -0.1652 | 0.0695 |
| 286.4975 | -0.2952 | 0.0444 |
| 317.1408 | -0.1858 | 0.0297 |
| 336.1456 | -0.0495 | 0.06 |
