Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 2.2028 GeV2 |
|---|---|
| xb : | 0.2504 |
| -t: | 0.4883 |
|
Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.

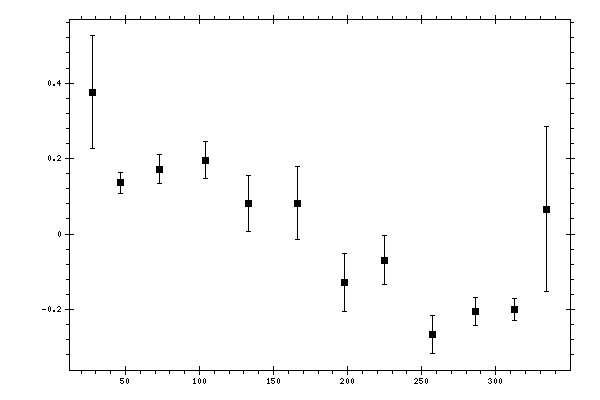

Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 27.8407 | 0.3762 | 0.149 |
| 46.4253 | 0.1359 | 0.0272 |
| 73.2149 | 0.1724 | 0.0395 |
| 104.3071 | 0.1958 | 0.0492 |
| 133.1948 | 0.0816 | 0.0743 |
| 165.9508 | 0.0821 | 0.0976 |
| 197.7134 | -0.1287 | 0.0766 |
| 224.9444 | -0.0692 | 0.065 |
| 257.4963 | -0.2653 | 0.0501 |
| 286.2383 | -0.2054 | 0.0368 |
| 312.9241 | -0.1995 | 0.0298 |
| 334.1075 | 0.0661 | 0.2188 |
