Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 3.292 GeV2 |
|---|---|
| xb : | 0.4613 |
| -t: | 0.5019 |
|

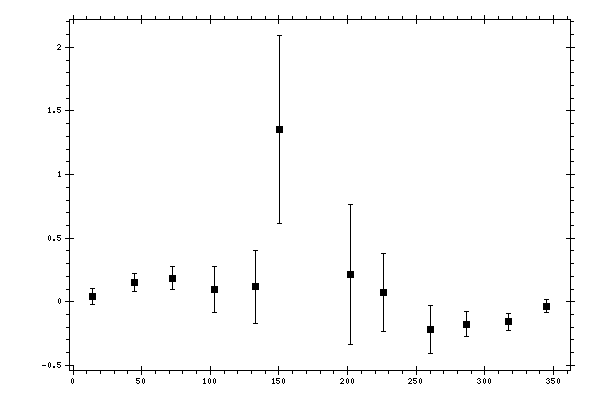

Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 14.3141 | 0.0452 | 0.0629 |
| 44.5733 | 0.1495 | 0.0695 |
| 72.2819 | 0.185 | 0.0904 |
| 103.0289 | 0.0971 | 0.1809 |
| 132.8927 | 0.119 | 0.2862 |
| 150.489 | 1.3547 | 0.7356 |
| 202.2502 | 0.2161 | 0.5516 |
| 226.1453 | 0.0719 | 0.3089 |
| 260.0245 | -0.2157 | 0.1879 |
| 286.5082 | -0.1764 | 0.0988 |
| 317.0798 | -0.1583 | 0.0694 |
| 344.678 | -0.0353 | 0.0519 |
