Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 1.3455 GeV2 |
|---|---|
| xb : | 0.1741 |
| -t: | 0.7921 |
|
Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.

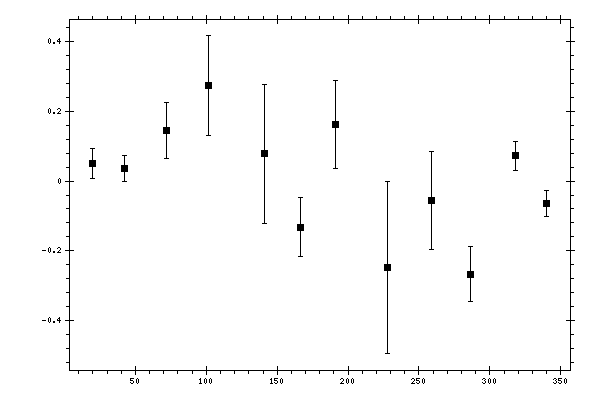

Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 19.836 | 0.0507 | 0.0426 |
| 42.4595 | 0.0357 | 0.0381 |
| 71.7618 | 0.1457 | 0.0801 |
| 101.5851 | 0.2748 | 0.1426 |
| 141.0274 | 0.0783 | 0.2008 |
| 166.5075 | -0.1323 | 0.0852 |
| 190.8232 | 0.1625 | 0.1259 |
| 227.5636 | -0.247 | 0.2471 |
| 258.7415 | -0.0557 | 0.1395 |
| 286.252 | -0.2673 | 0.0797 |
| 318.1658 | 0.0727 | 0.0424 |
| 339.8407 | -0.0641 | 0.0376 |
