Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 1.6453 GeV2 |
|---|---|
| xb : | 0.235 |
| -t: | 0.1465 |
|
Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.

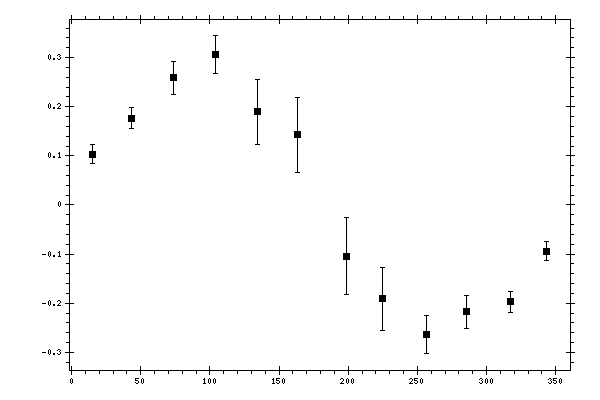

Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 15.2696 | 0.1031 | 0.0191 |
| 43.0756 | 0.177 | 0.0207 |
| 73.773 | 0.2587 | 0.0335 |
| 104.0795 | 0.3058 | 0.0384 |
| 134.1899 | 0.1901 | 0.0663 |
| 163.3319 | 0.1428 | 0.0764 |
| 199.0154 | -0.1045 | 0.0786 |
| 224.9377 | -0.1913 | 0.0635 |
| 256.7675 | -0.2635 | 0.038 |
| 285.7491 | -0.2177 | 0.0339 |
| 317.2088 | -0.1972 | 0.0206 |
| 343.2076 | -0.0943 | 0.0192 |
