Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 3.0357 GeV2 |
|---|---|
| xb : | 0.3582 |
| -t: | 0.7573 |
|
Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.

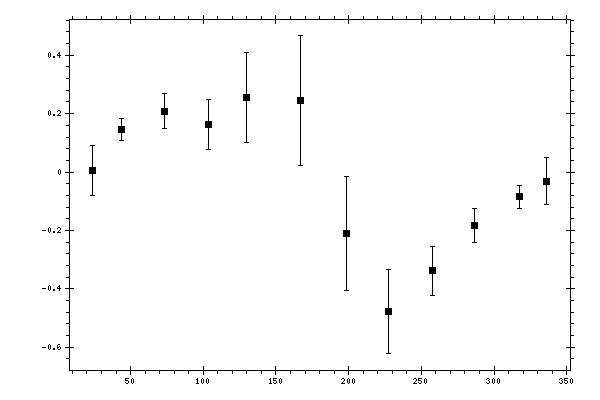

Measured data:
|
φ,
deg |
A,
dimensionless |
Stat. error,
dimensionless |
|---|---|---|
| 23.91 | 0.0056 | 0.0865 |
| 44.0038 | 0.1456 | 0.0369 |
| 73.378 | 0.208 | 0.0602 |
| 103.545 | 0.164 | 0.0858 |
| 129.5338 | 0.2557 | 0.1536 |
| 166.6473 | 0.2439 | 0.2227 |
| 198.7818 | -0.2106 | 0.1951 |
| 227.3918 | -0.477 | 0.1437 |
| 257.9913 | -0.3386 | 0.0841 |
| 286.2406 | -0.1822 | 0.0583 |
| 317.1891 | -0.0855 | 0.039 |
| 335.9474 | -0.031 | 0.082 |
