Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 1.1498 GeV2 |
|---|---|
| xb : | 0.1337 |
| -t: | 1.2751 |
|
Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.

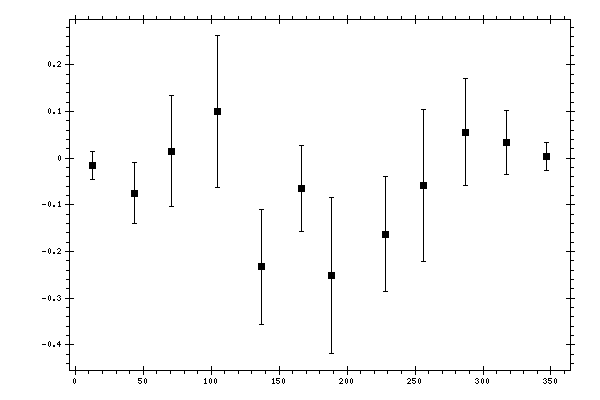

Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 12.8029 | -0.0159 | 0.03 |
| 43.5163 | -0.0749 | 0.0655 |
| 71.1496 | 0.015 | 0.1181 |
| 104.3779 | 0.0998 | 0.1619 |
| 136.7685 | -0.2329 | 0.1228 |
| 166.724 | -0.0656 | 0.0921 |
| 188.1782 | -0.2511 | 0.1664 |
| 228.4346 | -0.1631 | 0.1228 |
| 256.3293 | -0.0589 | 0.1629 |
| 286.8688 | 0.0554 | 0.1142 |
| 317.5331 | 0.0339 | 0.068 |
| 346.5615 | 0.0034 | 0.0306 |
