Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 1.6751 GeV2 |
|---|---|
| xb : | 0.2492 |
| -t: | 1.3252 |
|

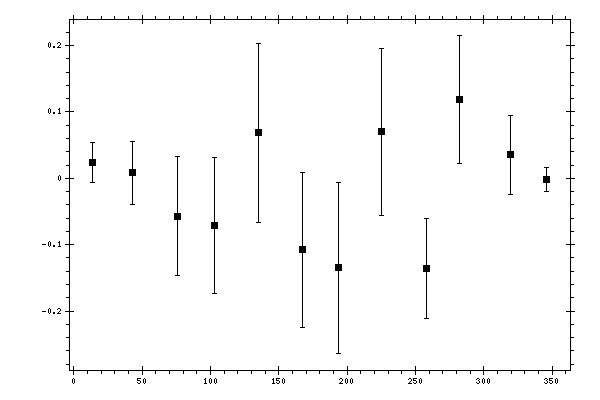

Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 13.7485 | 0.0234 | 0.0304 |
| 43.009 | 0.008 | 0.048 |
| 76.0945 | -0.0569 | 0.09 |
| 102.9529 | -0.0713 | 0.1028 |
| 134.7399 | 0.0688 | 0.1349 |
| 167.2186 | -0.1076 | 0.1168 |
| 193.6988 | -0.1347 | 0.1286 |
| 224.8705 | 0.07 | 0.126 |
| 257.783 | -0.1363 | 0.0752 |
| 281.819 | 0.1185 | 0.096 |
| 319.5546 | 0.0353 | 0.0597 |
| 345.6346 | -0.0018 | 0.0183 |
