Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 1.9367 GeV2 |
|---|---|
| xb : | 0.2475 |
| -t: | 1.3139 |
|

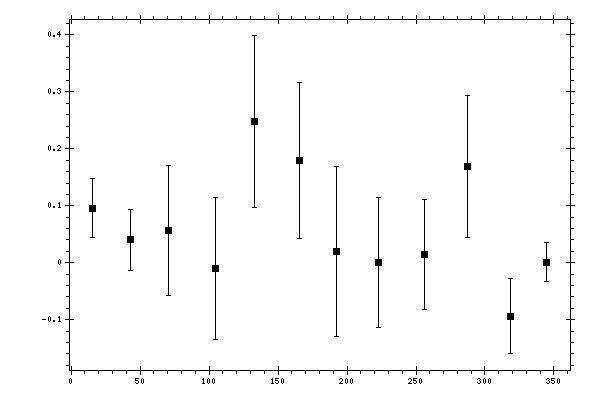

Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
φ,
deg |
A,
dimensionless |
Stat. error,
dimensionless |
|---|---|---|
| 15.6064 | 0.096 | 0.0524 |
| 43.2952 | 0.0403 | 0.0536 |
| 70.5029 | 0.0568 | 0.1144 |
| 104.5934 | -0.0102 | 0.1247 |
| 132.9317 | 0.2477 | 0.1507 |
| 165.2494 | 0.1798 | 0.1375 |
| 192.2483 | 0.0194 | 0.1496 |
| 222.5859 | 0.0004 | 0.1134 |
| 255.9909 | 0.0144 | 0.0961 |
| 287.5241 | 0.1692 | 0.1247 |
| 318.5622 | -0.0936 | 0.0651 |
| 344.4541 | 0.0013 | 0.0337 |
