Parameter (X axis): φ, deg
You are not logged in.
Experiment: E1-DVCS E06-003, 2005
Spokespersons: Francois-Xavier Girod
Experiment comment: E1-DVCS: Beam Spin Asymmetries for the exclusive photon electroproduction on the proton
Publication:
Quantity measured: A, dimensionless
Beam spin asymmetry.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: γrp, polarization: none
| Q2 : | 2.0207 GeV2 |
|---|---|
| xb : | 0.3517 |
| -t: | 1.3662 |
|
Observable quantity measured (Y axis): A, dimensionless
Parameter (X axis): φ, deg |
Click here to get data in text file, delimited with tabs.

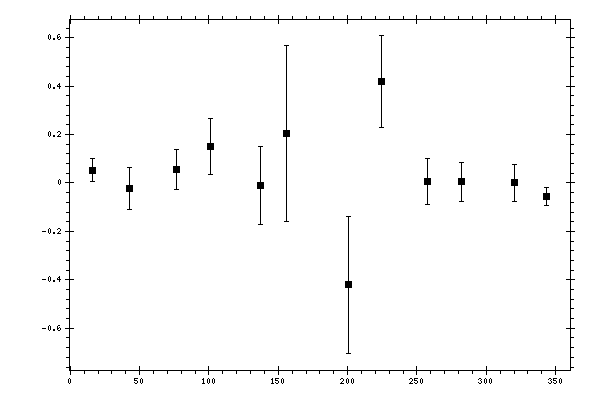

Measured data:
|
φ,
deg |
A,
dimensionless |
Data errors,
dimensionless |
|---|---|---|
| 16.1383 | 0.0532 | 0.0484 |
| 42.4306 | -0.0214 | 0.0872 |
| 76.2368 | 0.0557 | 0.084 |
| 101.3163 | 0.1496 | 0.115 |
| 136.8296 | -0.0098 | 0.1622 |
| 155.6127 | 0.2045 | 0.3633 |
| 200.6608 | -0.4197 | 0.283 |
| 224.0865 | 0.4188 | 0.1888 |
| 257.4418 | 0.0051 | 0.096 |
| 282.479 | 0.005 | 0.0813 |
| 320.4645 | 0.0001 | 0.0781 |
| 343.2951 | -0.055 | 0.0378 |
